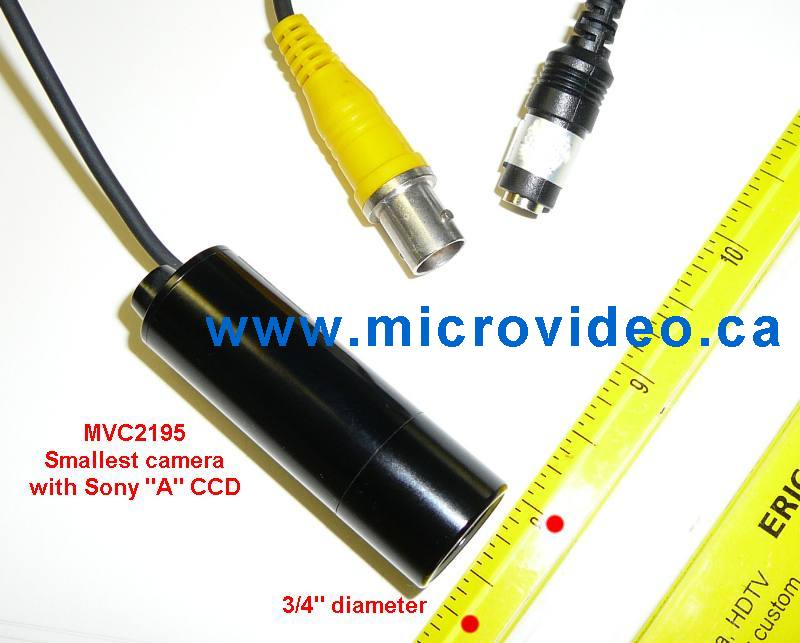

MVC2195

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing
• Image Sensor: 1/3 inch Sony Super HAD CCD
• ("NOT" Low res. / low sensitivity CMOS type sensor)
• Lens: f = 3.6 mm OR see optional lenses
• Field of view: ~ typical diagonal 70 degrees with std lens
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution:  ~ 550 TV lines
• Luminance S/N: More than 45db  with auto gain off
• Sensitivity: .5 Lux
• Voltage:  5  volts @ 150 ma.
• Size: 3/4" Diameter barrel
• ENCLOSURE: Made of Aluminum, Weather-Resistant
