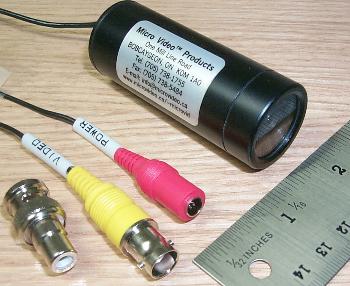

High Resolution Color Lipstick Tube Weatherproof Miniature Video Camera Colour Video Camera w/ Weatherproof Housing, Hi-Res Color,
# MVC6470 Miniature "Tube"
Color Tube Hi-Res
Drill a 29 mm. ~ 1-1/8" Hole into a Door or Wall - Slip Camera in - You're Done!!
Mount anywhere with a plain bolt! or use Swivel mount Kit supplied.
How about Helmet mounting? - wow! .....
Helmet Cam - Click to see Picture of Helmet "Lipstick" Cam package
Or Industrial Inspection applications.
Output compatable with your VCR or video capture board
Real CCD - solid state video sensor
(High Res CCD sensor)
Automatically adjusting iris - for varying light levels
Scanning System: EIA 2:1 Interlacing
Image Sensor: 1/3 inch solid state interline Colour CCD - SONY Japanese Chipset
(Hi-Res CCD type sensor)
Lens: f = ~ 4 mm (standard)
Field of view: ~ diagonal 70 degrees
Sync System: Internal
Iris: Automatic adjust
Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
Horizontal resolution: approximately 470 TV lines
Luminance S/N: More than 46db
Sensitivity: 1.0 Lux
Voltage: 9 - 13 volts @ 150 ma.
Size: ~1-1/8" (29 mm.) Diameter barrel x 2-7/8" (74 mm.) long
ENCLOSURE: Made of Aluminum, Weather-Resistant

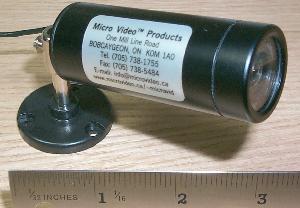

Mount: 1/4" /20 Threaded Mount & Swivel kit included
Simple wiring. P.S. jack & BNC (or ask for RCA) Plug included. 9 - 12 Volt power supply is needed.
If you want us to do custom wiring or add a power supply - just ask & we'll quote.
Full instructions supplied.
One Mill Line Road
Bobcaygeon, Ontario, Canada, K0M 1A0
