Micro Video ^(TM) Products

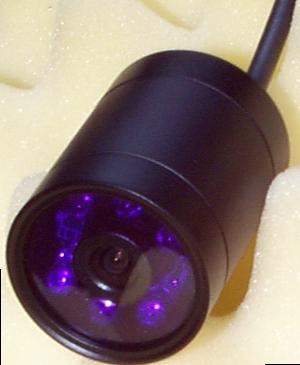

# MVC2000-WP-LED

---

WATERPROOF
Miniature "Tube"
SUBMERSIBLE
"Lipstick" Video Camera
with Built-in Infrared LED illuminators

© ©

---

The Camera head easily works to 30 Meters of Water Depth!!
- Or use in adverse "water-soaked" weather applications
- easily Mounts anywhere with a single Screw!
- Full Swivel Mount Kit is Supplied

Helmet Cam - Click to see Picture of typical Helmet "Lipstick" Cam package

---

Excellent for Industrial Inspection in "Low" or "no ambient light" conditions

---

1. Infrared LEDS built-in - can see in total darkness even "underwater"
2. Heavy Duty Immersible Housing included
3. - Full Swivel Mount Kit is Supplied
4. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
5. Output compatable with your VCR or video capture board

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing (625 line CCIR {European} version is in stock!)
• Image Sensor: 1/3 inch solid state interline B/W CCD Image sensor
• Lens: f = 3.6 mm
• LEDs: includes 6 Infrared LEDs circumferentially around the lens
• Field of view: ~ diagonal 80 degrees
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: ~ 400 TV lines
• Luminance S/N: More than 45db
• Sensitivity: .2 Lux @ F1.4
• Supplied Voltage: 9 - 15 volts @ 110 ma.
• Size: Less Than 1.5 " Diameter barrel x 2" long (with 1.8 or 30 meter harness)
• ENCLOSURE: Made of Brass, Waterproof, LEDs inside
• Waterproof: Camera & LED enclosure can withstand 30 Meters (~100 ft.) water depth

• 5 Foot wiring uncluded - we can do custom wiring up to hundreds of feet - even for underwater!
• - Full Swivel Mount Kit is Supplied
• If you want us to do custom wiring - just ask & we'll quote.
• Full instructions supplied.
