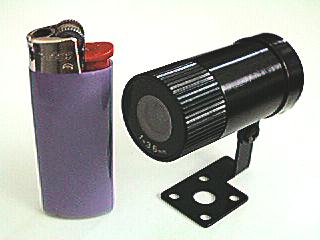

# MVC2000 Miniature "Tube"
Lipstick Video Cameras
©
©
Drill a 7/8" Hole into a Door or Wall - Slip Camera in - Your Done!!
- Or use the Simple Mount Kit (supplied) & Mount anywhere!
Helmet Cam - Click to see Picture of typical Helmet "Lipstick" Cam package
Output compatable with your VCR or video capture board
Real CCD - solid state video sensor
("NOT" Low res. / low sensitivity CMOS type sensor)
Incredibly small
Weather-Resistant Housing
included
Automatically adjusting iris - for varying light levels
Camera Specifications:
Scanning System: EIA 525 lines, 2:1 Interlacing (625 line CCIR version on special order)
Image Sensor: 1/3 inch solid state interline B/W CCD Image sensor
("NOT" Low res. / low sensitivity CMOS type sensor)
Lens: f = 3.6 mm
Field of view: ~ diagonal 80 degrees
Sync System: Internal
Iris: Automatic adjust
Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
Horizontal resolution: more than ~ 400 TV lines
Luminance S/N: More than 45db
Sensitivity: .2 Lux @ F1.4
Supplied Voltage: 9 - 15 volts @ 110 ma.
Size: 7/8" Diameter barrel x 2" long
ENCLOSURE: Made of Aluminum, Weather-Resistant
Simple wiring
If you want us to do custom wiring - just ask & we'll quote.
Full instructions supplied.
Amazing Products
Micro Video
(TM)
Products
One Mill Line Road
Bobcaygeon, Ontario, Canada, K0M 1A0
MVC2000
......... w/aluminum hsg & Mount Kit
$169 US
